This Python program is a high-fidelity, hardware-in-the-loop (HIL) style simulation of a V8 internal combustion engine and its Electronic Control Unit (ECU). It combines physical engineering logic (fluid mechanics, rotational thermodynamics, transmission loads) with a graphical dashboard interface built using PyQt5 and live performance charting via Matplotlib.

------------------------------

## 🏗️ 1. Architecture & Core Modules

The software is divided into four structural components that interact inside a closed real-time loop.

 [ Interactive UI Controls ] <---> [ ECU Controller ]

                                           |

                                           v

[ 2D Windshield Display ] <---> [ Engine Simulator (V8) ]

                                           |

                                           v

                                [ 8 x Cylinder Models ]

## Module A: The Individual Cylinder Model (Cylinder)

Instead of treating the engine as a single power source, this module breaks the V8 block down into eight separate physical combustion chambers.

* Degradation Scaling: Each cylinder tracks its own internal health (100% down to 0%) and its own fuel injector clogging rating, which fluctuates organically around the master fuel line deterioration.

* Thermal Physics Loop: The combustion temperature inside each chamber climbs dynamically based on the active workload (throttle open percentage) multiplied by how efficiently that specific cylinder is firing.

## Module B: The Multi-Cylinder Engine Simulator (EngineSimulator)

This is the mathematical core of the program. It calculates the raw physics equations governing vehicle movement and rotational kinetics.

* V8 Firing Order Sequencing: The code replicates a genuine American V8 firing order sequence: 1-8-4-3-6-5-7-2. As the engine sweeps through its rotations, a mathematical index steps through this list. The cylinder whose turn it is to fire generates a major peak torque multiplier (2.0× leverage), while the remaining seven cylinders provide background kinetic inertia (0.8×).

* Fluid Viscosity Modeling: Motor oils change thickness based on heat. The code models four distinct oil profiles (5W-30, 0W-20, 10W-40, 20W-50). It calculates a dynamic viscosity_drag penalty based on oil type and temperature, which actively resists crankshaft rotation.

* Dynamic Oil Pressure Formula: Oil pump pressure is linked to engine speed and oil condition:

$$\text{Oil Pressure} = \left(15.0 + \frac{\text{RPM}}{100} \times 0.8\right) \times \text{Viscosity Modifier} \times \text{Oil Life Percentage}$$

* Rotational Crankshaft Acceleration: Rotational velocity (Δ RPM) is driven by power production minus systemic drag forces (gear load resistance, braking pressure, and oil viscosity drag). If the vehicle runs out of fuel, torque immediately zeros out, causing the engine to stall.

## Module C: The Electronic Control Unit (ECUController)

Acting as the vehicle's onboard processing brain, this class intercepts user commands and scans system parameters against a map of standard automotive diagnostic rules.

* Onboard Diagnostic (OBD-II) Logging: The ECU scans all 8 cylinders and engine fluid balances every 100 milliseconds. If any parameter drifts outside safe engineering limits, it populates a list of active Diagnostic Trouble Codes (DTCs):

* P0301 - P0308: Triggered if a specific cylinder experiences an ignition or fuel misfire.

   * P021D: Triggered if an individual cylinder overheats past 115°C.

   * P0522: Triggered if motor oil pressure drops below a safe lubrication ceiling (20 PSI) while high revs are sustained.

   * P0171 / P0300: Triggered by structural lean conditions due to severe fuel system fuel starvation or clogged injectors.

* Electronic Rev Limiter: If the crankshaft speed exceeds the structural safety limits (7,000 RPM to 7,500 RPM, depending on chosen oil weight), the ECU clips the electronic throttle value to 0%, safely cutting fuel delivery until revs subside.

## Module D: The Graphical Interface & Virtualization Panels (MainDashboard & WindshieldView)

* WindshieldView Widget: A custom QWidget that uses a drawing canvas (QPainter) to render a 2D roadway perspective. It animates yellow lane stripes down the screen at a rate tied to vehicle velocity to simulate motion. Steering changes shift the road's perspective left or right.

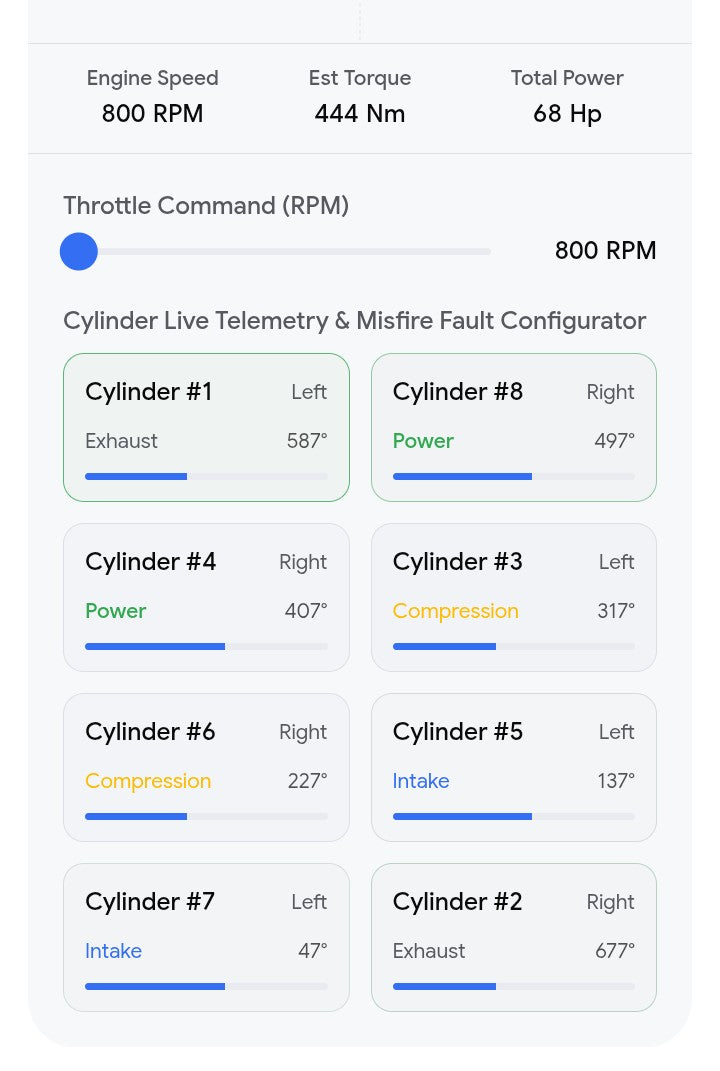

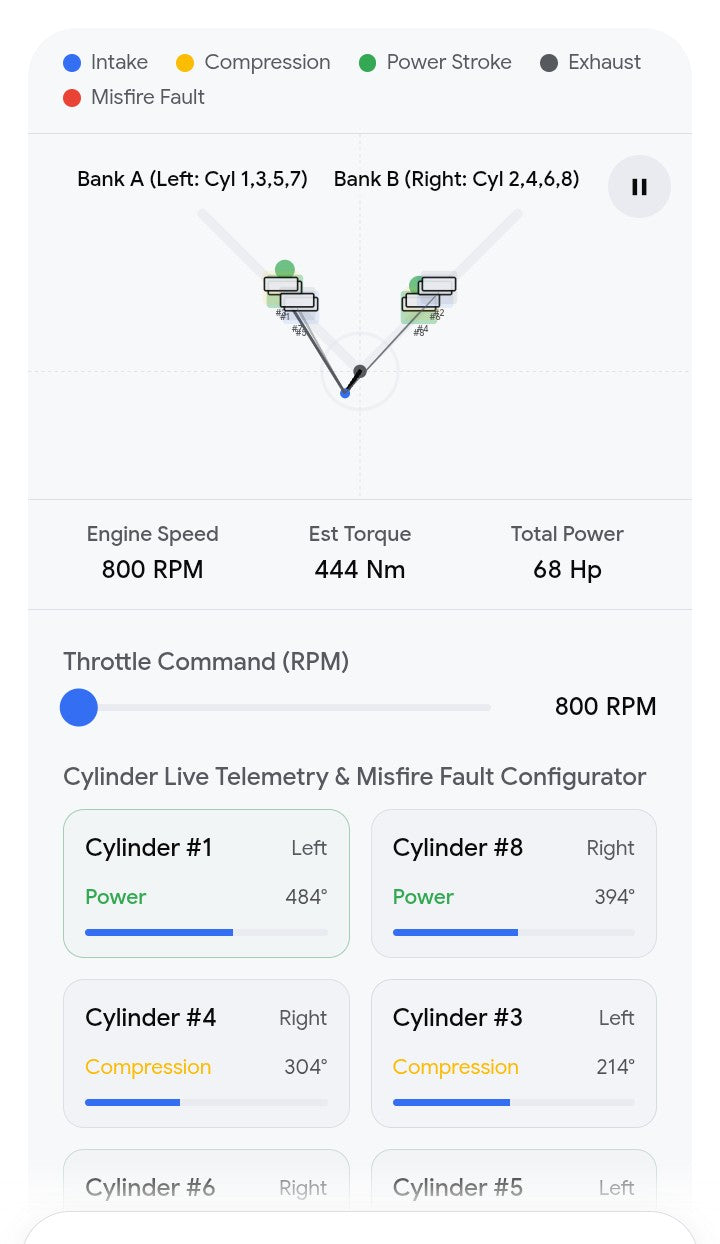

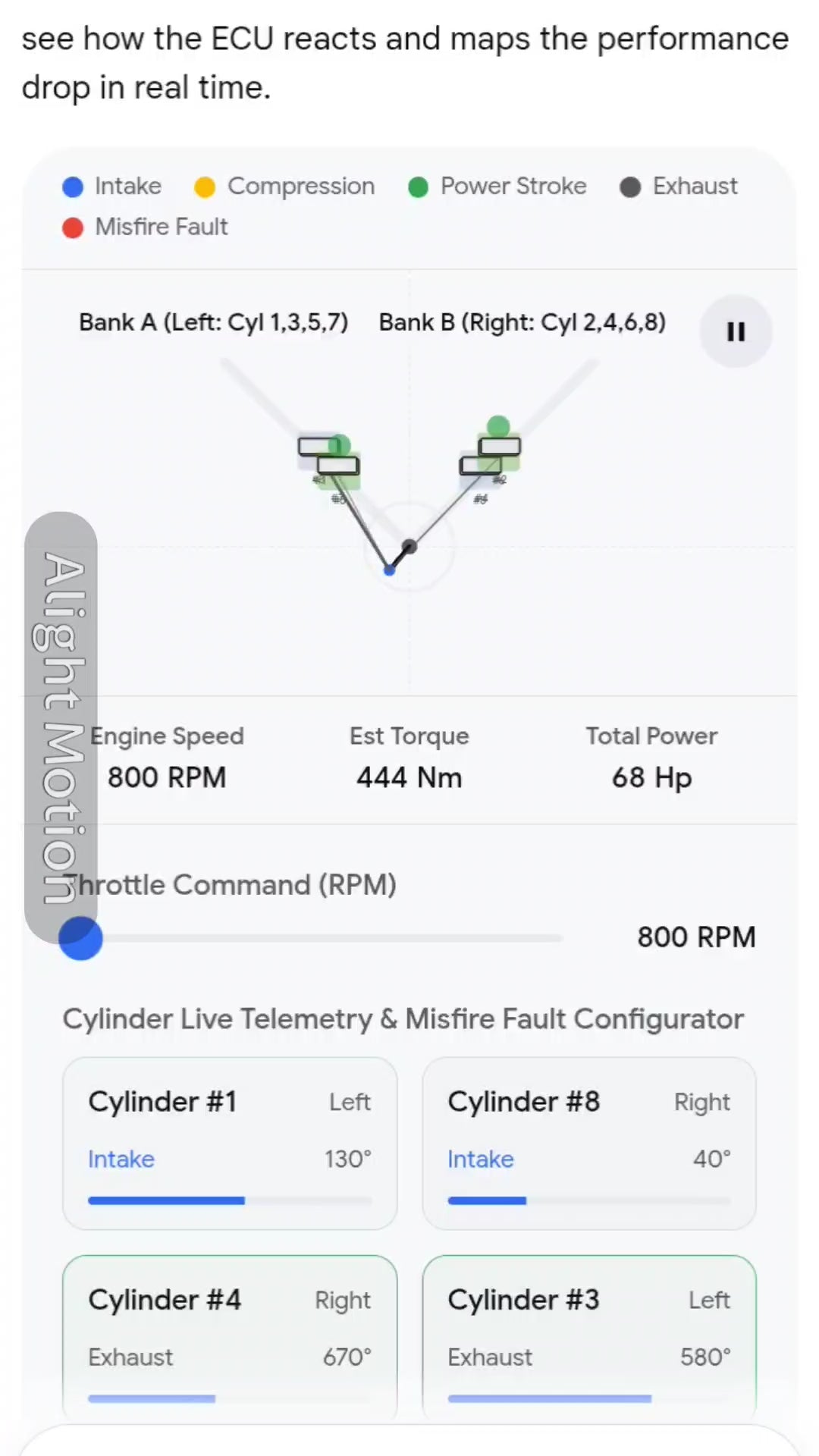

* Matplotlib Canvas: A dual-plot live chart window. The top axis tracks a historical timeline trace of engine output speed (RPM). The bottom panel runs an active 8-Cylinder Performance Power Balance Bar Chart, painting healthy cylinders bright blue and misfiring ones red.

------------------------------

## 🔄 2. The Execution Loop (How Data Flows)

When launched, a QtCore.QTimer fires a signal exactly every 100 milliseconds (10Hz frequency) to execute a complete data cycle:

   1. Input Collection: The UI reads the exact state of the throttle slider, steering angle, gear selector, oil selection box, and any active cylinder fault checkboxes.

   2. ECU Evaluation: The data passes to the ECU. The ECU checks for structural safety, processes rev limits, determines fuel-trim modifiers, and logs active fault codes.

   3. Physics Computation: The physics calculator applies the approved throttle setting, advances the V8 firing sequence, updates individual cylinder temperatures, depletes the fuel tank, accumulates odometer mileage, and evaluates total crankshaft acceleration.

   4. UI Refresh: The dashboard updates text monitors, alters road graphic speeds, scrolls the historical RPM graph, and scales the cylinder balance bars to provide real-time visual telemetry.
